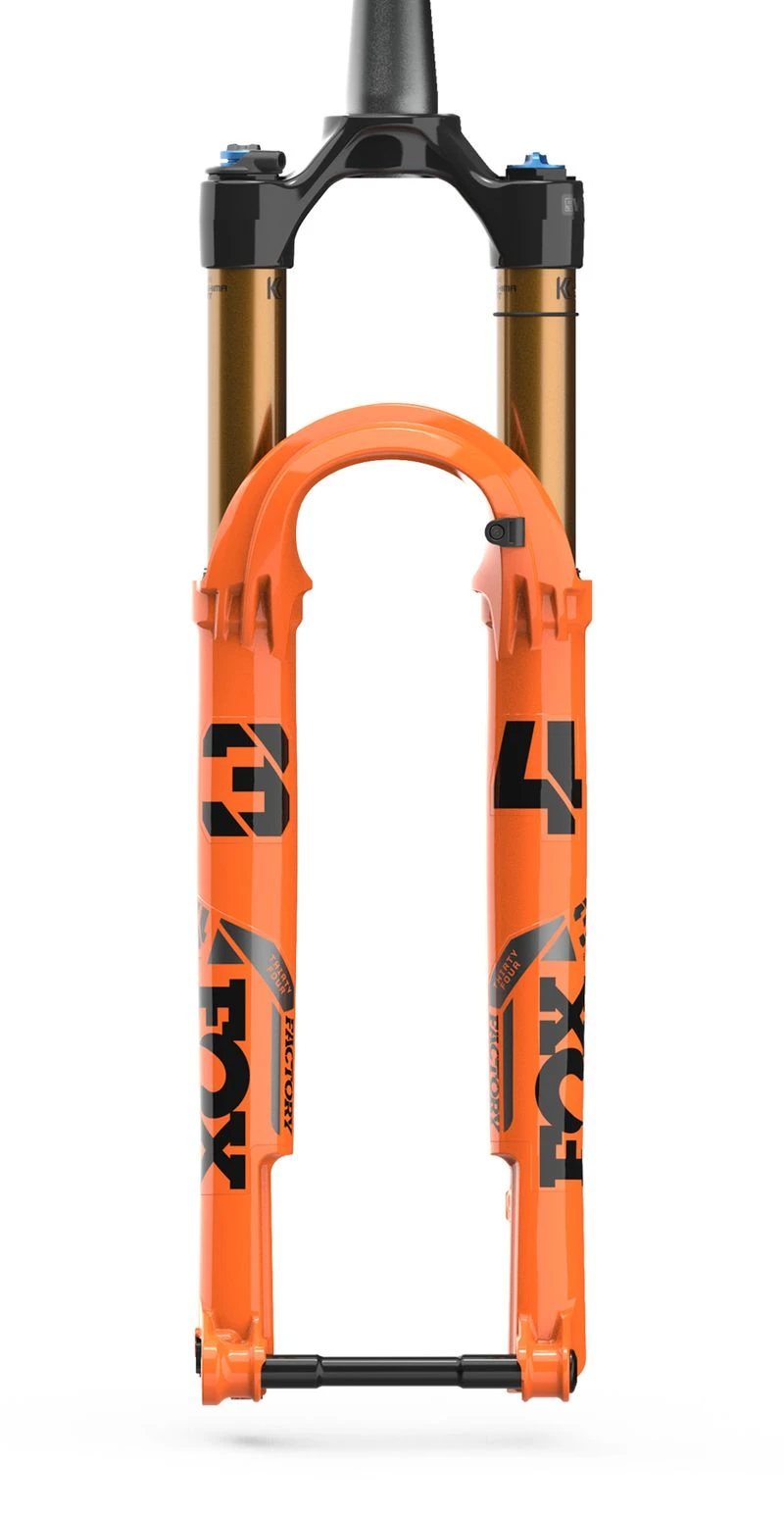

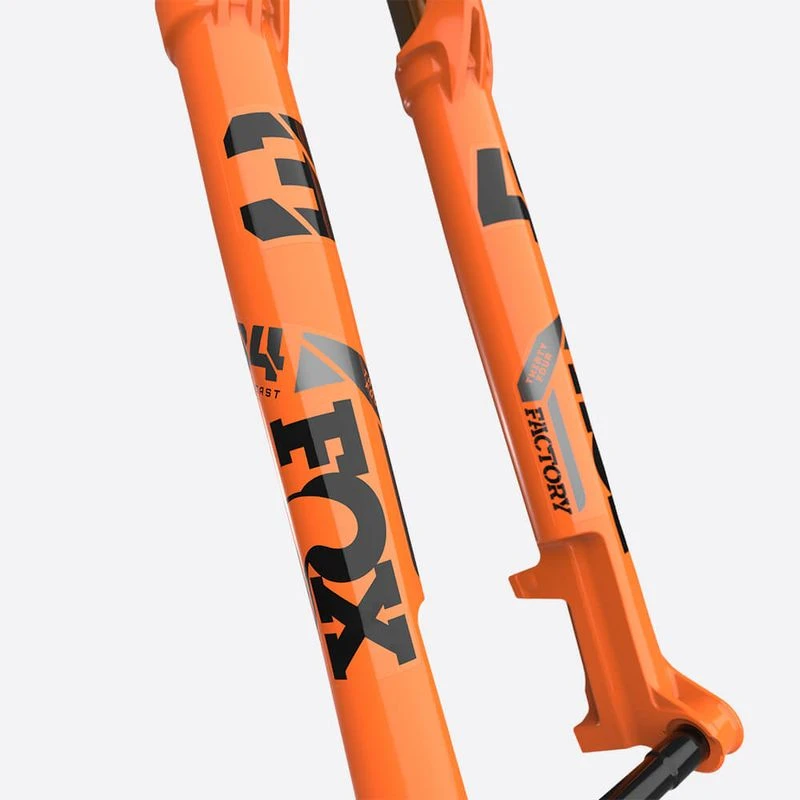

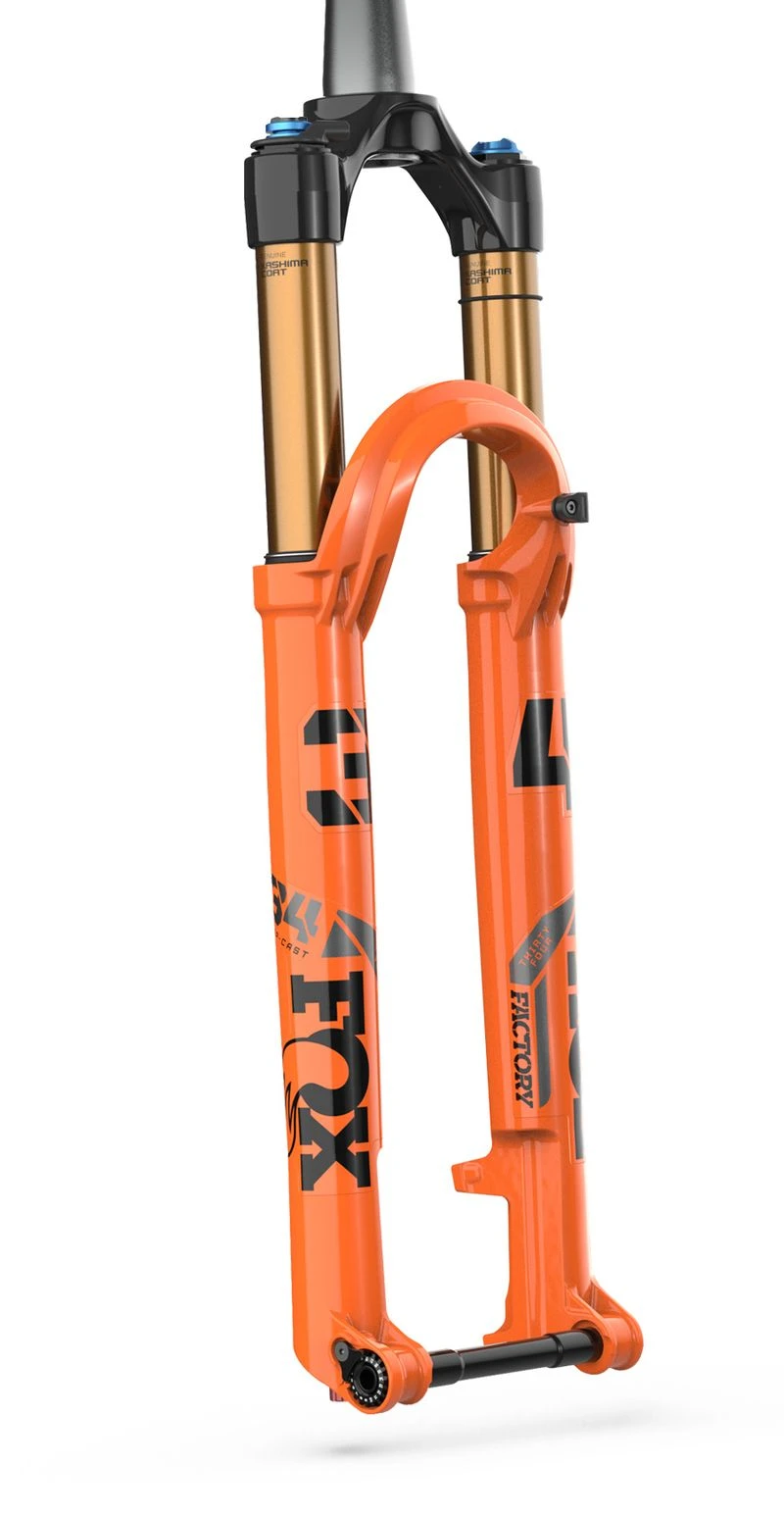

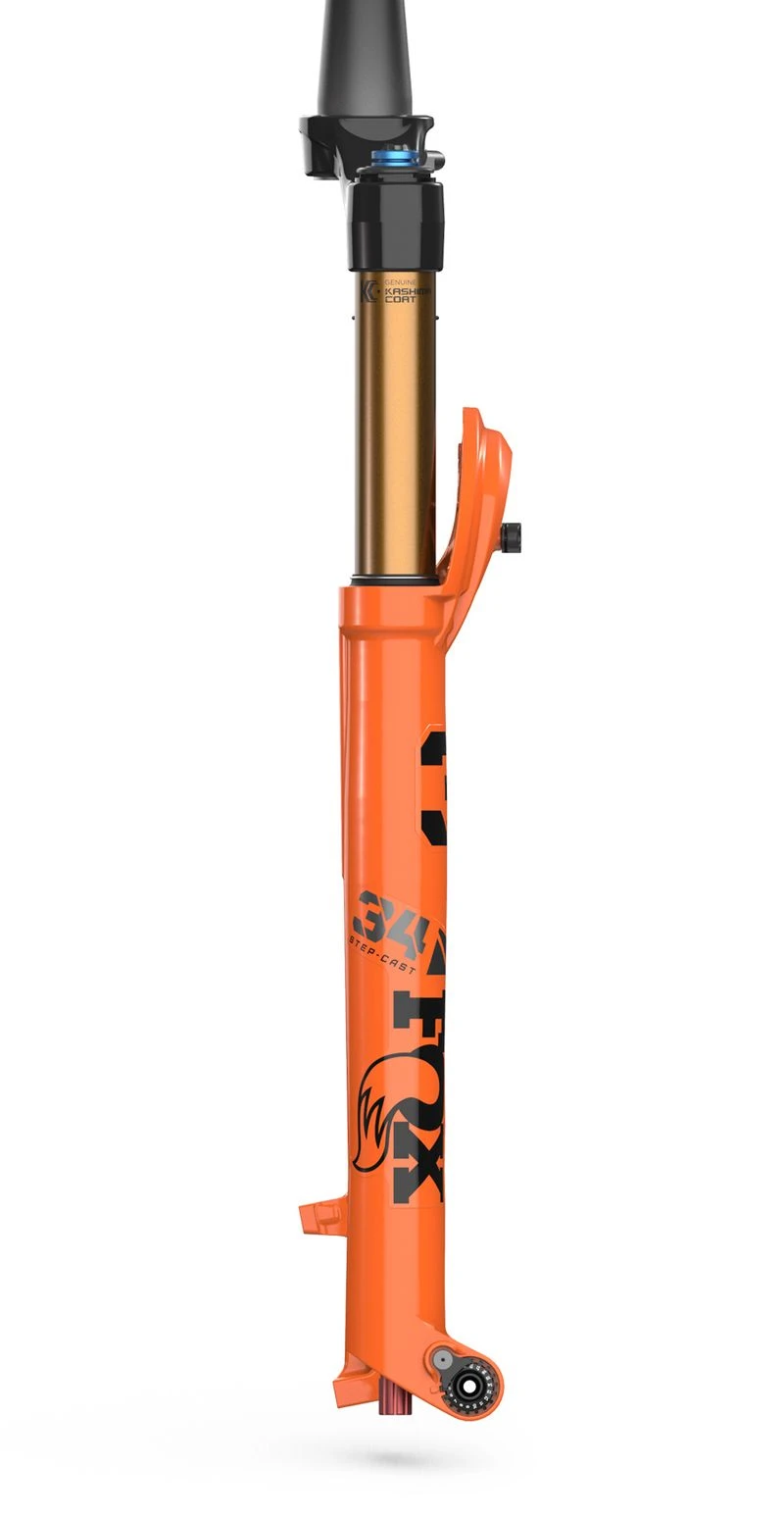

Fork Fox 34 SC K 29 120 Factory Fit4 RMT PTL 44mm K110 Orange 2022

Specifications:

Experience: Cross Country
Wheel size: 29
Suspension: Air
Spring travel: 100 mm, 120 mm
Fork Tube: 1 1/8″ – 1.5″ tapered
Axle system: Thru axle
Wheel standard: 15 x 110 mm (Boost)
Brake mounting: Disc PM6 (direct mount 160 mm
Technical data:

Offset: 44 mm
Tube length: 264 mm
Stem clamp tube diameter: 28.6 mm
Fork tube diameter Crown: 40 mm
Mounting width: 110 mm
Down tube diameter: 34 mm
Fork steerer tube material: Aluminium
Fork crown material: Aluminium
Down tube material: Aluminium
Down tube material: Magnesium

Adjustments:

Compression: 3 positions via Remote (Open / Medium / Firm) with Low-Speed adjustment (22 levels) in Open mode
Extension: Yes (10 levels)
Suspension Stiffness: via air pressure
Remote: Yes
Spring travel adjustment: No

Restrictions:

Max. tyre size: 29 x 2.4
Note: The tyre clearance must be checked after any tyre or rim change with the fork fully compressed. It must be at least 8.5 mm all round.
Maximum brake disc size: 180 mm
Weight limit: 121 kg (system weight)
Maximum air pressure: 120 psi (8.3 bar).

Features:

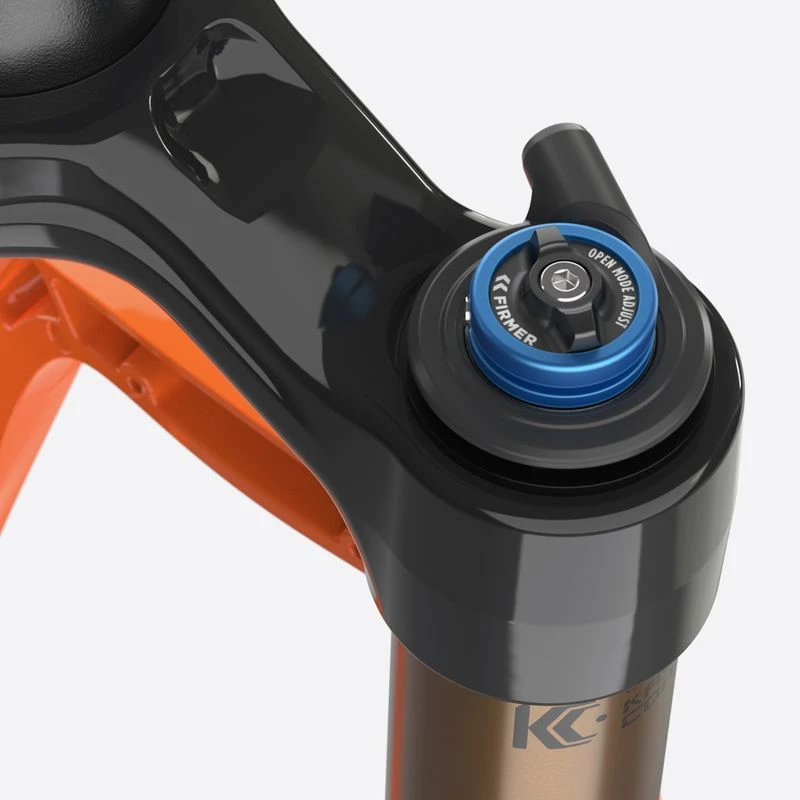

– FIT4 Push-to-Lock Remote damping cartridge with 3-position selection via Remote and Low-Speed compression fine adjustment in Open mode.
– narrow, lightweight Step-Cast design with notches on the axle for the brake disc and spokes
– optimised fork bridge design for increased stiffness, more space in the steerer tube area and shorter travel
– air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure build-up

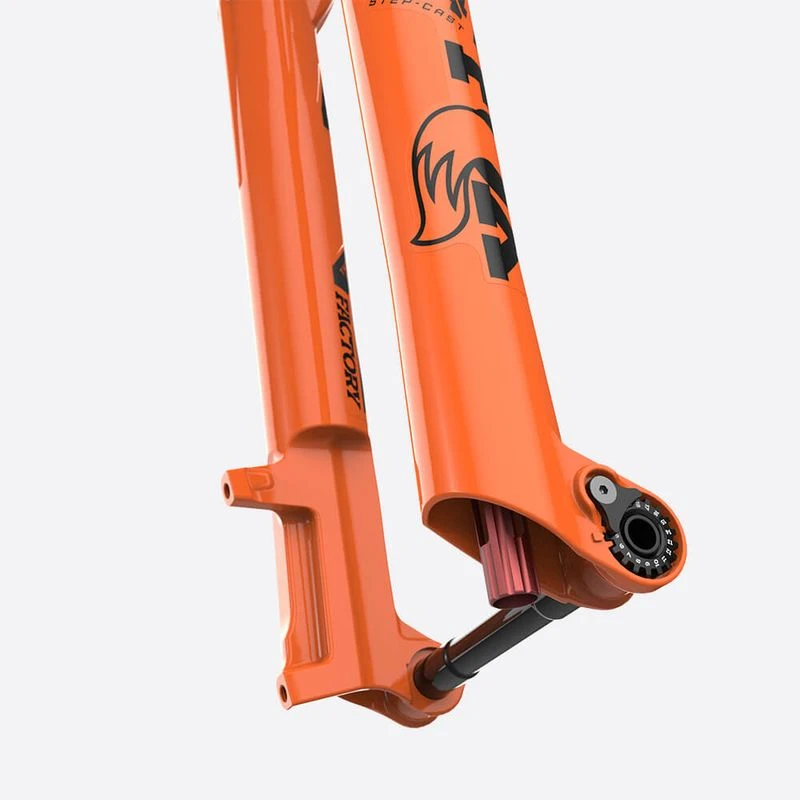

– with lightweight Kabolt thru axle
– Factory-Series with Kashima coating to minimise friction and optimise responsiveness
– Float EVOL air suspension for responsive response, more linear spring characteristics and optimal support throughout the spring travel
